*** HQ-Box series is a mature product and is currently available for ongoing projects only ***

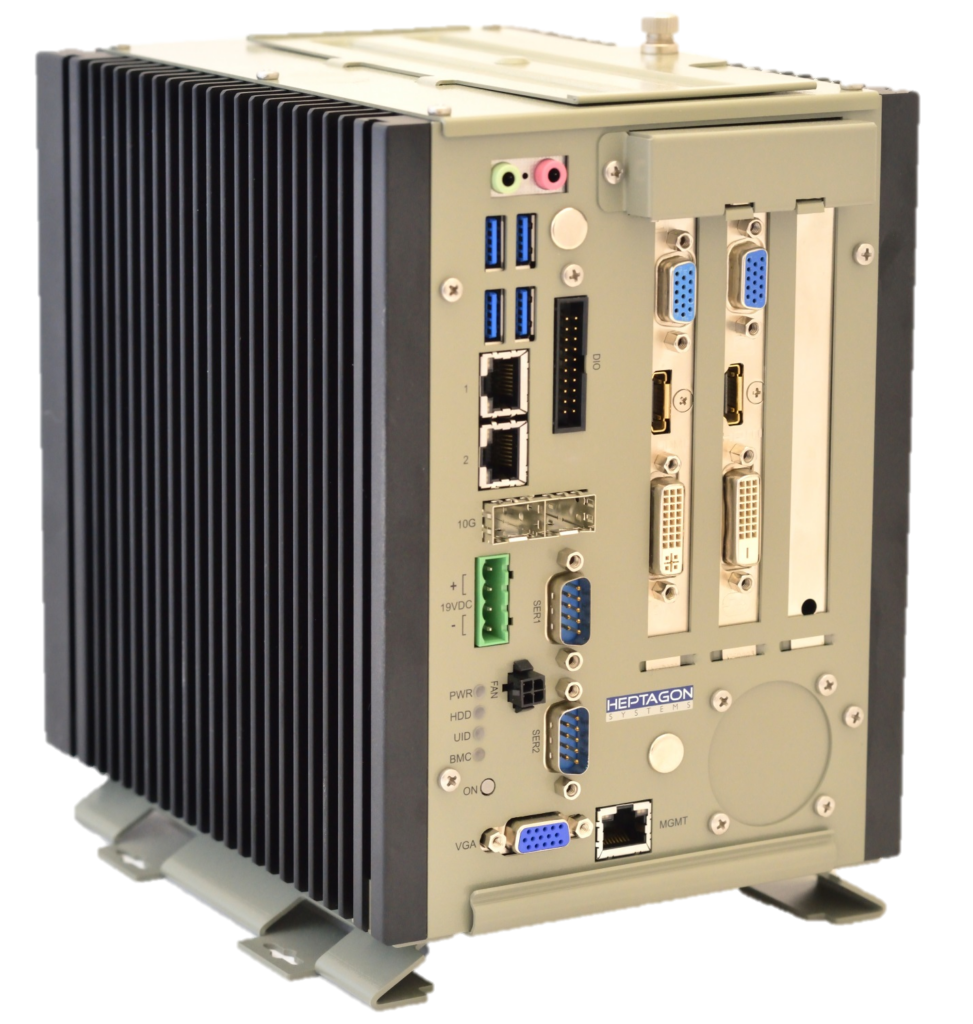

Combines Dual U.2 bay and a PCIe slot
- Dual U.2, 2.5″ disk, NVMe / SATA bay
- 1x PCIe 3.0 x8, FHHL AOC slot
- Intel® Xeon® D-1500 CPU, 4-16 cores, 35-65W, in 154x195x200mm enclosure
- 4x DDR4 2133/2400 MHz DIMM288 with ECC, up to 128GB
- 3x M.2 SSD: 2x NVMe + 1x SATA, 22110/2280
- 2x 10G SFP+ and 2x GbE Ethernet
- Aspeed AST2400 BMC (board management controller)
- 4x USB 3.0, TPM 2.0, VGA, 2x Serial ports

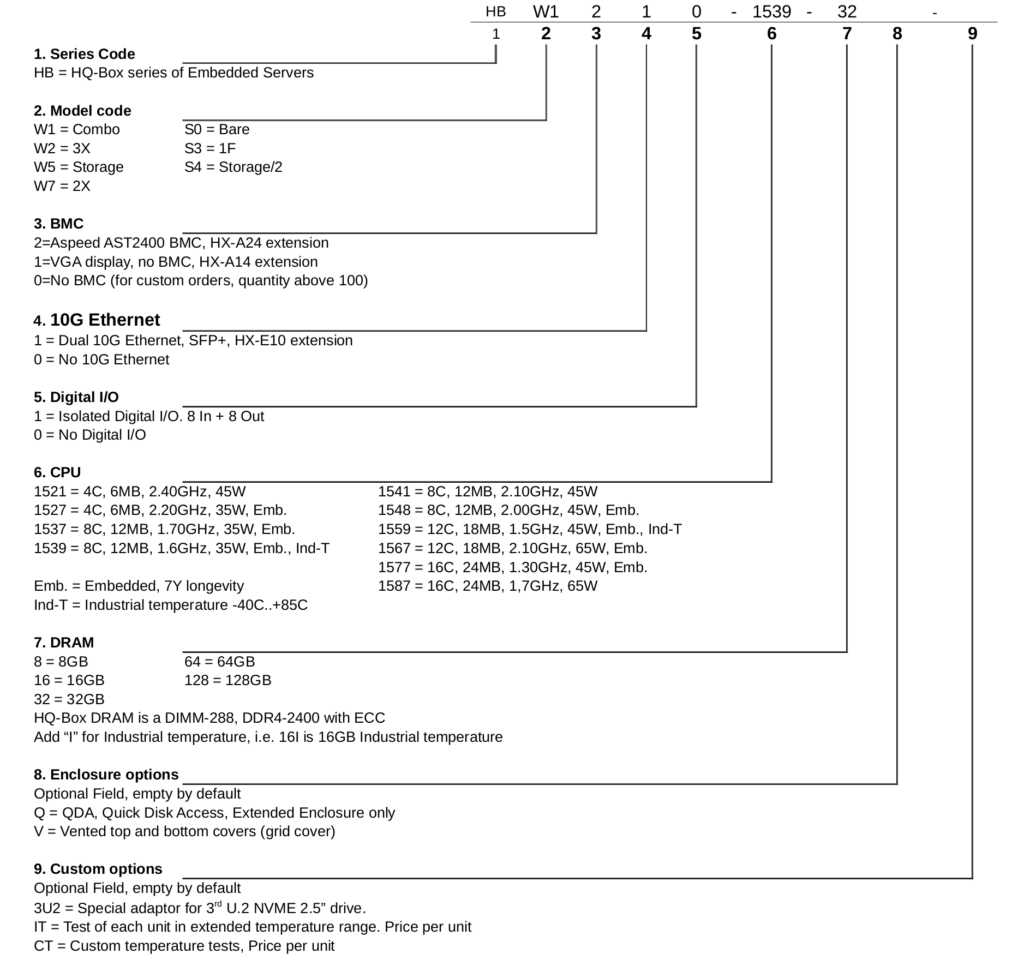

Distinctive model feature
| Model | U.2 2.5″ bay | M.2 SSD | PCIe slots | PCIe slot configuration | GbE | 10G SFP+ | BMC | Enclosure |
|---|
| 1F | 0 | 3 | 1 | x16 | 2 | 2 | Yes | Slim |
| Combo | 2 | 3 | 1 | x8 | 2 | 2 | Yes | Full |
| Storage/2 | 2 | 3 | 0 | — | 2 | 2 | Yes | Slim |
| 2X | 0 | 3 | 2 | x8 + x8 | 2 | 2 | Yes | Full |
| 3X | 0 | 3 | 3 | x8 + x4 + x4 | 2 | 2 | Yes | Full |
| Storage | 4 | 3 | 0 | — | 2 | 2 | Yes | Full |
| Bare | 0 | 3 | 0 | — | 2 | 2 | Yes | Slim |
Specifications
| Processor | Intel® Xeon® D-1500, 4–16 cores, 35–65W. |
| Memory | 4x DDR4 2133/2400MHz DIMM288 with ECC, up to 128GB. |
| Storage | 3x M.2 SSD (22110/2280): 2x NVMe + 1x SATA. Model-dependent U.2 2.5″ bays — see model feature table above. |
| Networking | 2x 10G SFP+ and 2x GbE Ethernet. |
| Management | Aspeed AST2400 BMC (board management controller). |
| Interfaces | 4x USB 3.0, TPM 2.0, VGA, 2x Serial ports. |
| Expansion | Model-dependent PCIe slot configuration — see model feature table above. |
| Environment | Fanless, maintenance-free operation. -30°C to +72°C operating temperature range. |
Full certification and mechanical detail: see the User Manual under Documents & Downloads.
